User's Manual of OARConvWin †[edit]

Usage †[edit]

Simplest Conversion (First Time) †[edit]

1. Open OAR File.
   1. Select "File" menu -> "Open OAR File", and select OAR file. (ex. ABC.oar)
2. OAR file is extracted.
   1. OAR folder is created with prefix "OAR_" at same folder as the OAR file. (ex. OAR_ABC)
3. Information dialog of OAR file is popped up.
   1. "Convert Data" sub menu becomes active automatically.
4. Convert OAR files
   1. Select "File" menu -> "Convert Data"
   2. Conversion starts and DAE folder is created with prefix "DAE_" at same folder as the OAR folder. (ex. DAE_ABC)

If you have already extracted OAR folder †[edit]

1. Open OAR Folder.
   1. Select "File" menu -> "Open OAR Folder", and select OAR folder. (ex. OAR_ABC)
2. or Open archive.xml file in extracted OAR folder.
   1. Select "File" menu -> "Open OAR File", and select archive.xml. (ex. OAR_ABC\archive.xml)
3. Information dialog of OAR file is popped up.
   1. "Convert Data" sub menu becomes active.
4. Convert OAR file
   1. Select "File" menu -> "Convert Data"
   2. Conversion starts and DAE folder is created with prefix "DAE_" at same folder as the OAR folder. (ex. DAE_ABC)

to Unity †[edit]

【Important】 forUnity3D\Editor\SelectOARShader.cs †[edit]

• Before drag and drop converted dae folder to the project view of Unity, please drag and drop to Unity3D\Editor folder to the project view first.

Menu Bar †[edit]

File †[edit]

&ref(): The style ref(filename,pagename) is ambiguous and become obsolete. Please try ref(pagename/filename);

Open OAR File †[edit]

• Select OAR file or archive.xml file in extracted OAR folder.
• When OAR file is selected, OAR file is extracted at the same folder as the OAR file and with "OAR_"(default) prefix folder name.
• If OAR file is read correctoly, "Information of OAR" Dialog is poped up and OAR path displayed at status line.

Open OAR Folder †[edit]

• Select extracted OAR folder.
• If OAR file is read correctoly, "Information of OAR" Dialog is popped up and OAR path displayed at status line.

Convert Data †[edit]

• Convert OAR files to DAE/STL files.
• DAE folder with prefix "DAE_"(default) is created at the same folder as the OAR file/folder.
• STL folder with prefix "STL_"(default) is created at the same folder as the OAR file/folder.

Exit †[edit]

• Exit from application.

Tools †[edit]

&ref(): The style ref(filename,pagename) is ambiguous and become obsolete. Please try ref(pagename/filename);

Log Window †[edit]

• Show Log Window

Objects List †[edit]

• Show Objects List Dialog

Settings †[edit]

• Show Settings Dialog

Help †[edit]

About †[edit]

• Show Information Dialog of this application

Child Windows and Dialog Windows †[edit]

Information of OAR Dialog †[edit]

• Information of OAR (Region).

Settings Dialog †[edit]

Start Num †[edit]

• Number of objects to start the conversion.
• 0 or less is specified, it is considered 1.

Stop Num †[edit]

• Number of objects to stop the conversion.
• -1 means infinity.

DAE †[edit]

• When "File"-> "Convert Data" is selected, DAE files are outputed.

STL †[edit]

• When "File"-> "Convert Data" is selected, STL files are outputed.

Output of Terrain Data †[edit]

• If checked, Terrain data is converted, too.

Terrain Texture Scale †[edit]

• Repeat factor of Terrain Image.
• Usually 7 is used at SL/OS Viewer.

Debug Mode †[edit]

• Debug information are displayed at Log Window

Shift †[edit]

• Specify position shift of objects

Folder †[edit]

• Specify prefix names of OAR, DAE and STL folders

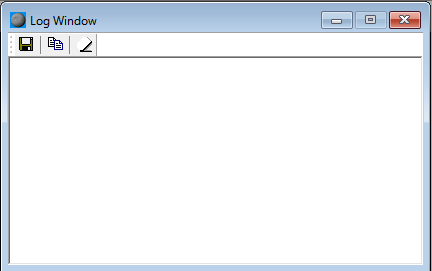

Log Window †[edit]

• Display Log Messages
• Floppy Icon
  • Save Log Messages
• Copy Icon
  • Copy selected area to cripboard.
• Eraser Icon
  • Clear Log

Objects List Dialog †[edit]

&ref(): The style ref(filename,pagename) is ambiguous and become obsolete. Please try ref(pagename/filename);

• Display name list of read objects.
• While this Dialog is displayed, File Menu is disabled.
• Double Click a object name
  • Show Preview Shape Window
• Select some object names and click "Convert" button
  • Selected objects are converted.
• Select some object names and click "3D Preview" button
  • Selected objects are displayed on Preview Shape Window.
  • At most 5 windows are displayed at a once.

Preview Shape Window †[edit]

&ref(): The style ref(filename,pagename) is ambiguous and become obsolete. Please try ref(pagename/filename);

• Display a preview a shape of object using BREP.
• Texture is not displayed. This is a Preview.
• Wire Icon
  • Display wire frame.
• Solid Icon
  • Display planes of Solid.
  • Illegal surface is displayed as Red Plane.
• Question Icon
  • Display solid (BREP) information of this object.
• Floppy + "D" Icon
  • Save as DAE file.
• Floppy + "S" Icon
  • Save as STL file.
