Getting Start of SLKinect †[edit]

Needed Resources †[edit]

• Second Life or OpenSim/Aurora account :-)
• MS Kinect with USB connector (about $150)
• MS DirectX (SLKinect need it)
• OpenNI http://www.openni.org/
• NITE (Middleware of OpenNI) http://www.openni.org/
• Kinect Driver (avin2-SensorKinect) https://github.com/avin2/SensorKinect/tree/master
• OpenNI PSI Pose Animation Data (or other Animation Data)
• ExternalAnimation.ini file (You can make it using text editor)
• Recompiled Viewer with our patched (and added) files.
• SLKinect

Recompiled Viewer †[edit]

• Probably, recompiled Viewer will not suit the Third Party Viewer Policy of Linden Lab.
• Please use this at Your Own Risk!!
• Best way is that Viewer developer include our patch in their Viewers.....

If you want to recompile SecondLife Viewer. †[edit]

• We recompiled Viewer using Imprudence Viewer source code. We did not try with another Viewers

1. Copy our modified source files (4 files) to llcharacter folder.
2. Add nslExternalAnimation.cpp and nslExternalAnimation.h to VS Project.
3. Execute build.
4. For more detail, please see each Viewer site. (sorry)

If you don't want to recompile SecondLife Viewer †[edit]

1. Install Imprudence Viewer 1.3.2 : http://wiki.kokuaviewer.org/wiki/Imprudence:Downloads
2. Download recompiled imprudence-bin.exe with our modification
3. Copy downloaded imprudence-bin.exe to install folder of Imprudence Viewer 1.3.2

OpenNI PSI Pose Animation Data †[edit]

• You can get OpenNI PSI Pose Animation at Parking Area of our Univ. SIM by L$0.
  • Click following board at Parking Area of our Univ. SIM.



• Or you can down load OpenNI_PSI.bvh and upload to SL (need L$10).

• Or you can create or chose other animation data.
  • Attention: Animation Data　must include the following joints data. If joint data is not included, that joint does not move.
  • "mPelvis", "mTorso", "mNeck", "mHead", "mShoulderLeft", "mElbowLeft", "mWristLeft", "mShoulderRight", "mElbowRight", "mWristRight", "mHipLeft", "mKneeLeft", "mAnkleLeft", "mHipRight", "mKneeRight", "mAnkleRight"

ExternalAnimation.ini †[edit]

• If you use OpenNI PSI Pose Animation from our Univ. SIM, please copy this ExternalAnimation.ini to install folder of Viewer.

• If you upload OpenNI_PSI.bvh or chose other animation data, please create ExternalAnimation.ini at install folder of Viewer using text editor.
• And write that animation UUID to ExternalAnimation.ini

SLKinect †[edit]

• Download from this Site. Latest Version is v1.0.1 (11 Nov. 2011)
• Not need to install. To execute program, please double click the extracted SLKinect.exe

Execute System †[edit]

Connect Kinect to your PC †[edit]

Execute recompiled SL Viewer †[edit]

1. Login to SL or OpenSim or Aurora.
2. Execute OpenNI PSI Animation (or which you chose).

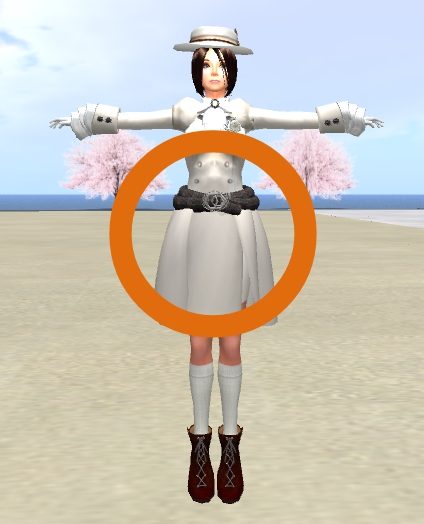

3. When execute OpenNI PSI Animation (or which you chose), if avatar performed T Pose, it is OK.
4. If avatar performed PSI Pose (or Original Pose), it is not good. Please check UUID in ExternalAnimation.ini
5. When avatar is performing T Pose, if there are any data at Shared Memory, avatar move by that data.

Execute SLKinect †[edit]

Double Click SLKinect Icon †[edit]

• SLKinect needs DirectX, OpenNI (NITE) and Kinect Driver

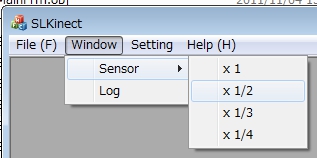

Execute Sensor Window †[edit]

• Click "Window" -> "Sensor" Menu
• Smaller window is faster than larger window.

Log Window †[edit]

• If you want to see Kinect Data Log, please click "Window" -> "Log" Menu
• Line number of Log Window is 3,000

• Log Window Icon
  • Floppy Icon: Save data to file.
  • Files Icon: Selected log area is copied to clipboard memory
  • Erase Icon: Erase current data.

Start Detection of Joints †[edit]

• Click Detection Start Button of Sensor Window.
• First user is RED, Second user is GREEN, Third user is BLUE.... Color change is until 6th User

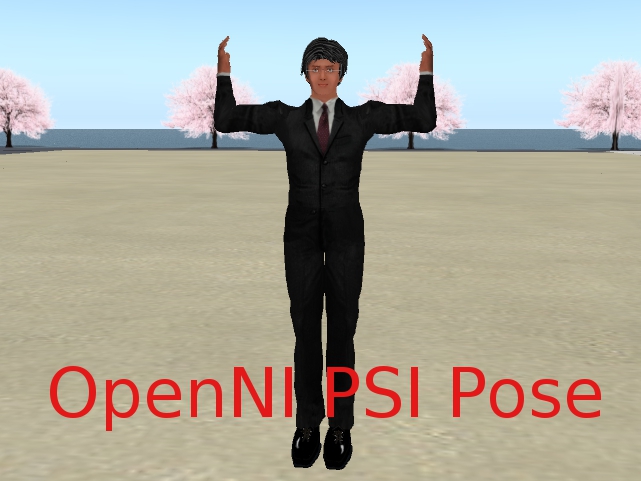

Perform PSI Pose. †[edit]

• When SLKinect detects PSI Pose, Joints data is sent to SL Viewer automatically.
• Have a fun!!

&ref(): The style ref(filename,pagename) is ambiguous and become obsolete. Please try ref(pagename/filename);

Stop Detection †[edit]

• If you want to stop Detection of Joint, click STOP Button

&ref(): The style ref(filename,pagename) is ambiguous and become obsolete. Please try ref(pagename/filename);

Setting of SLKinect †[edit]

View Mode †[edit]

• Mirroring: If this box is checked, Mirroring is executed.
• Use Camera Image: If this box is unchecked, Sensor Window does not display camera image (Light gray screen is displayed).

&ref(): The style ref(filename,pagename) is ambiguous and become obsolete. Please try ref(pagename/filename);

Log Mode †[edit]

• Select displayed data on Log Window

&ref(): The style ref(filename,pagename) is ambiguous and become obsolete. Please try ref(pagename/filename);
